OS D-IMS Series

Indoor Luminaries

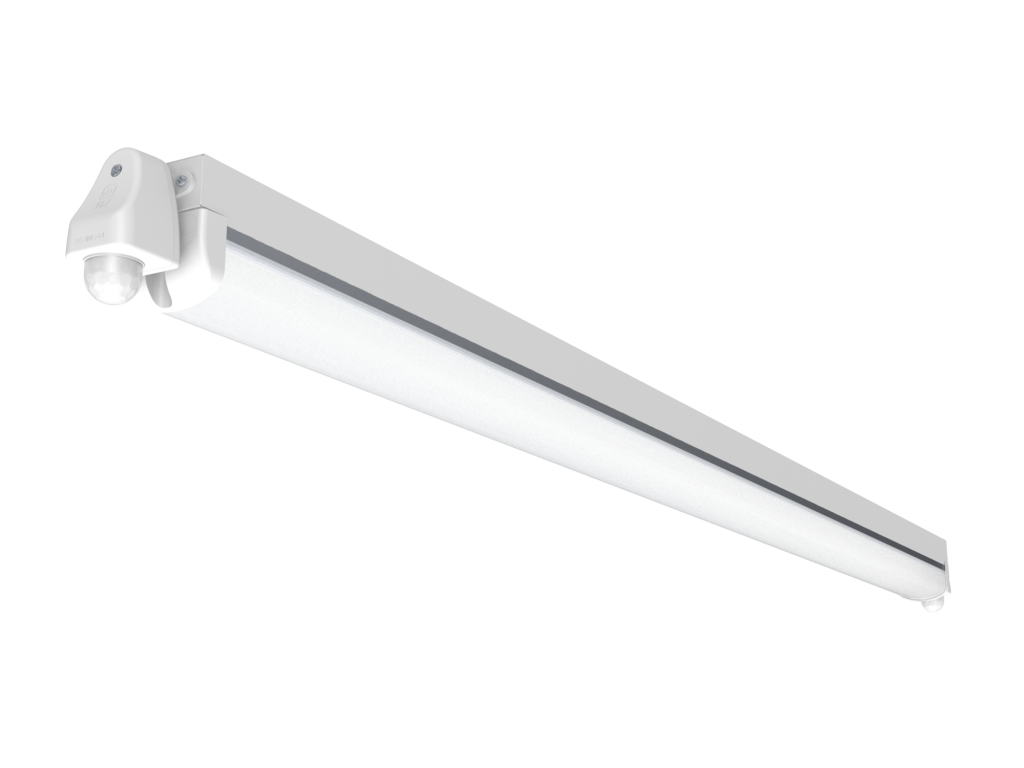

LED REEDED DIFFUSER BATTEN FITTING – OS D-IMS Series

The OS D-IMS Series combines clean lines with smart functionality. Fitted with an LED strip behind a reeded diffuser, it delivers uniform lighting with a refined appearance. Equipped with an integrated infrared motion sensor (IMS), the fitting activates only when needed—ideal for enhancing energy efficiency. Designed for quick installation and minimal upkeep.

Application : Staircase, Car Park, Office, Hotels, Hospitality, School, Laboratory, Hospitals, Restaurants, Supermarket, Shopping Complex, Public & Commercial Building
Certificate : Nil
Colour : Smooth White

Body Fabricated from Mild Steel (Thickness: 0.5mm)
Diffuser Polycarbonate (PC) Opal Linear Diffuser
Gear Tray Extruded from Aluminium Alloy
End Cap Injection Moulded from Polycarbonate (PC)
Connector Nylon 3 Way x 2.5mm2
Finishing Electrostatically Polyester Powder Coated
Mounting Type Surface Ceiling / Wall / Suspension
Driver VIP IMS Series
Lamp OS LED Linear Strip
Sensor Infrared Motion Sensor
Dimming Type Sensor Dimming
Model OS D2-1/OL-IMS OS D2-2/OL-IMS OS D4-1/OL-IMS OS D4-2/OL-IMS
Driver VIP 20W/500mA/40V/IMS
Sensor Infrared Motion Sensor
System Lumen (lm) Full Load (100%)  2200 lm 2200 lm 2400 lm 2400 lm
Saving Mode (30% ±5%) 700 lm 700 lm 750 lm 750 lm
System Power (W) Full Load (100%)  19 W 18 W 18 W 18 W
Saving Mode (30% ±5%) 6 W 6 W 6 W 6 W
System Current (A) 0.5 A
Efficacy (lm/W) 116 lm/W 122 lm/W 133 lm/W 133 lm/W
Main Supply (V, Hz) 220~240V, 50/60Hz
IP Grade IP 54 for LED
IP 20 for Housing
Classification Class I
Power Factor PF ≥ 0.90 PF ≥ 0.95 PF ≥ 0.90 PF ≥ 0.90
Operating Temperature (ta) 0°C ~ 35°C
Max. Casing Temperature (tc) 85°C
Rated Lifespan 50,000 hrs
CRI > 80 Ra
SDCM ≤ 5
Beam Angle 120°
Available CCT Warm White (3000K), Cool White (4000K), Daylight (6500K)
Model Product
Weight (Kg)		 Carton Size (mm) Gross
Weight (Kg)		 Quantity
L W H
OS D2-1/OL-IMS Kg mm mm mm Kg 1pc / Carton
OS D2-2/OL-IMS Kg mm mm mm Kg 1pc / Carton
OS D4-1/OL-IMS Kg mm mm mm Kg 1pc / Carton
OS D4-2/OL-IMS Kg mm mm mm Kg 1pc / Carton

Model Luminaires Dimension (mm)
Driver LED Module Colour Temperature, CCT (K) L W H
OS D2-1/OL-IMS 1 x VIP 20W/500mA/40V/IMS 1 x LED-2FT-STRIP-72-xxxxK-G3 3000K 4000K 6500K 676 mm 53 mm 66 mm

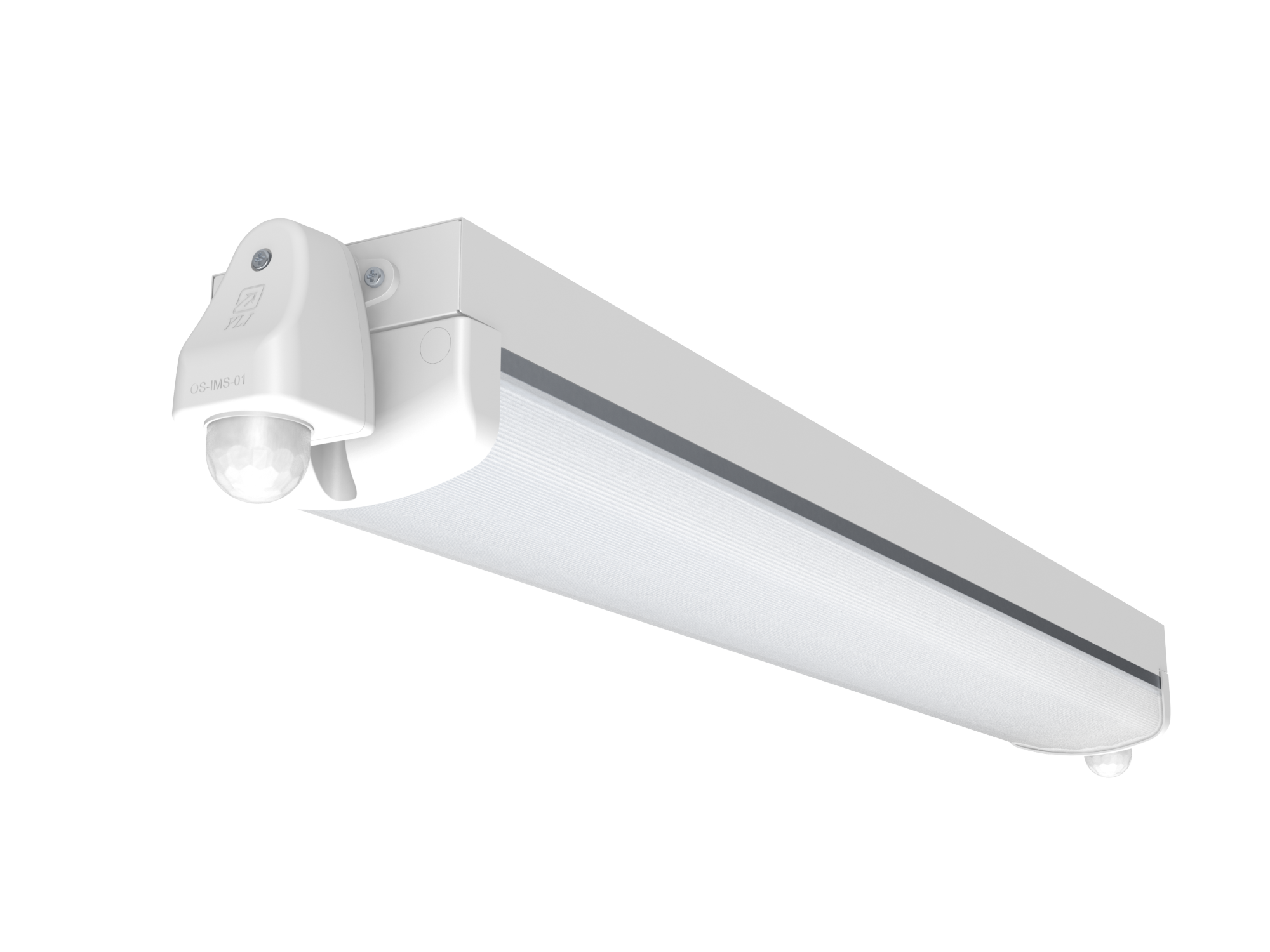

OS D2-2/OL-IMS 1 x VIP 20W/500mA/40V/IMS 2 x LED-2FT-STRIP-72-xxxxK-G3 3000K 4000K 6500K 677 mm 81 mm 66 mm

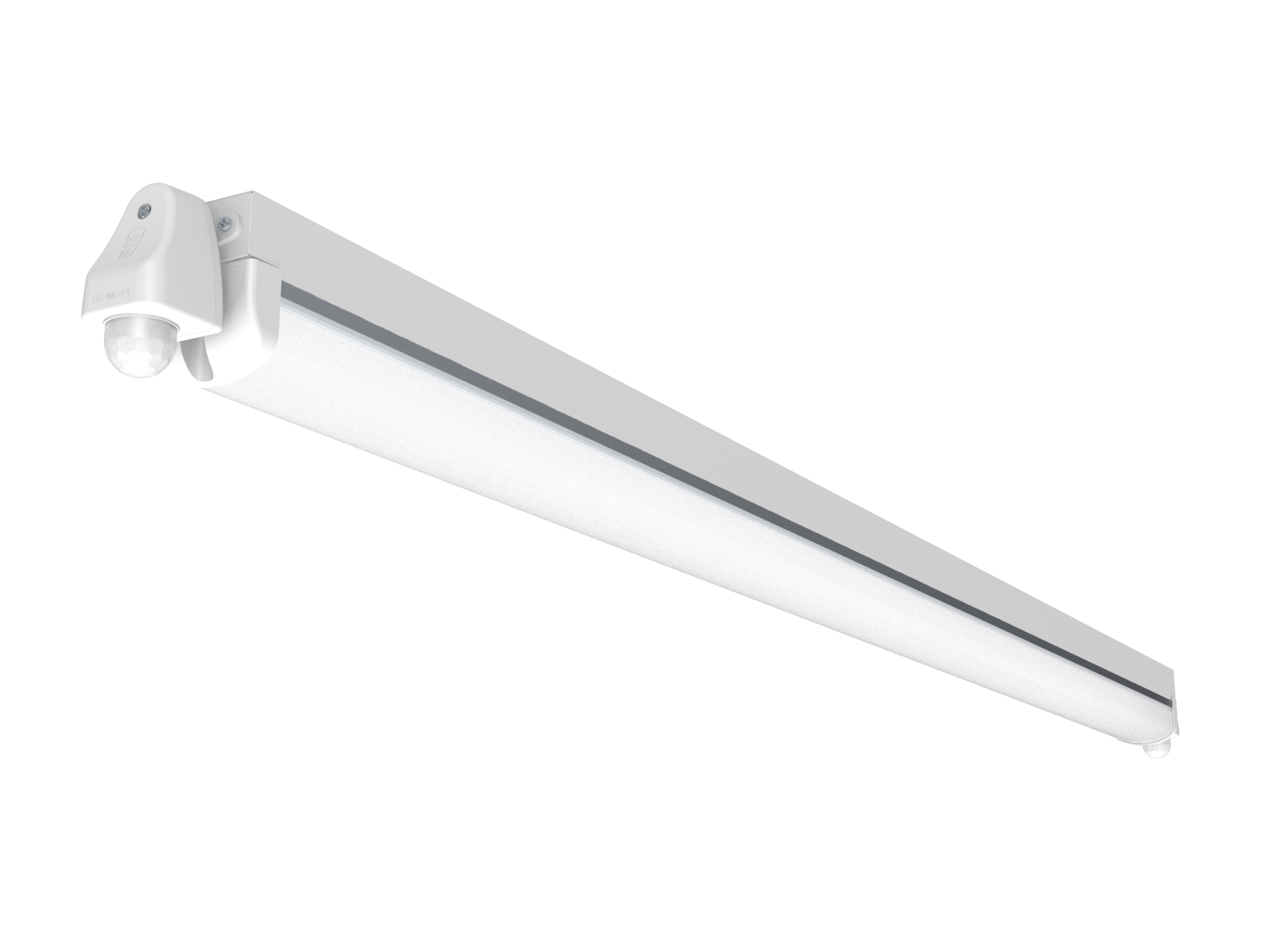

OS D4-1/OL-IMS 1 x VIP 20W/500mA/40V/IMS 1 x LED-4FT-STRIP-144-xxxxK-G3 3000K 4000K 6500K 1237 mm 53 mm 66 mm
OS D4-2/OL-IMS 1 x VIP 20W/500mA/40V/IMS 2 x LED-4FT-STRIP-144-xxxxK-G3 3000K 4000K 6500K 1236 mm 81 mm 66 mm
LED Linear Fitting LED Linear Fitting

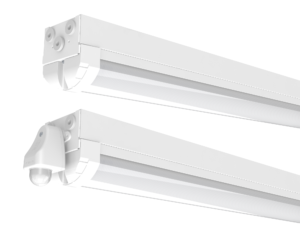

OS YB/OL Series OS D Series
DTS 1:
Data Sheet – OS D2-1/OL-IMS (LED-2FT-STRIP-72-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (6W & 19W)
Download File
DTS 2:
Data Sheet – OS D2-2/OL-IMS (LED-2FT-STRIP-72-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (6W & 18W)
Download File
DTS 3:
Data Sheet – OS D4-1/OL-IMS (LED-4FT-STRIP-144-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (6W & 18W)
Download File
DTS 4:
Data Sheet – OS D4-2/OL-IMS (LED-4FT-STRIP-144-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (6W & 18W)
Download File
File 1:
IES_OS D2-1/OL-IMS (Full Load) (LED-2FT-STRIP-72-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (19W)
Download File
File 2:
IES_OS D2-1/OL-IMS (Saving Mode) (LED-2FT-STRIP-72-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (6W)
Download File
File 3:
IES_OS D2-2/OL-IMS (Full Load) (LED-2FT-STRIP-72-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (18W)
Download File
File 4:
IES_OS D2-2/OL-IMS (Saving Mode) (LED-2FT-STRIP-72-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (6W)
Download File
File 5:
IES_OS D4-1/OL-IMS (Full Load) (LED-4FT-STRIP-144-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (18W)
Download File
File 6:
IES_OS D4-1/OL-IMS (Saving Mode) (LED-4FT-STRIP-144-xxxxK-G3) (VIP 20W/500mA/40V/IMS) (6W)
Download File
